INTERCEPTOR CS, Centrally Managed Alarmed PDS is a Network infrastructure Cyber Security Solution

INTERCEPTOR CS is CNSSI 7003 Compliant, DISA Risk Management Framework accredited, and is the only system of its kind with a Certificate of Networthiness.  INTERCEPTOR CS provides an end-to-end solution that quickly and cost effectively ensures organizations pass CCRIs the first time, every time.

HOW IT WORKS

At the heart of the product line is the INTERCEPTOR™ Optical Network Security System.

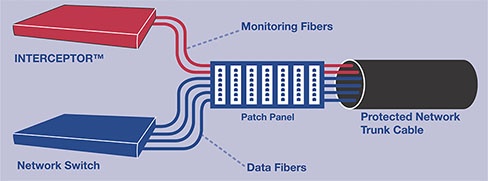

Using patented technologies, INTERCEPTOR ensures the integrity and availability of network data by monitoring spare (unused) strands of fibers within the optical cables of the network infrastructure.  This 24/7/365 monitoring allows the system to immediately detect and report even the most subtle tampering or the most sophisticated intrusion attempts. When spare/unused fibers are not available, INTERCEPTOR+Plus can monitor active (data transmitting) fibers.

24/7/365 monitoring of network cables detects tampering within the infrastructure
Eliminates daily inspections required of traditional PDS per CNSSI 7003
Smart-filtering™ technology eliminates false alarms by learning normal day-to-day activity
Plug-and-protect™ capability allows rapid deployment on new or existing network infrastructure
Auto-configuration eliminates time-consuming manual tuning
No bandwidth bottlenecks or degradation of network performance
Commonly Deployed INTERCEPTOR Alarmed Carrier PDS Architectures:

Contact our Sales Engineers to discuss your specific environment, get recommendations on leveraging our products’ interfaces to integrate with your existing systems, or to deploy a custom, scaleable, mission-focused solution.

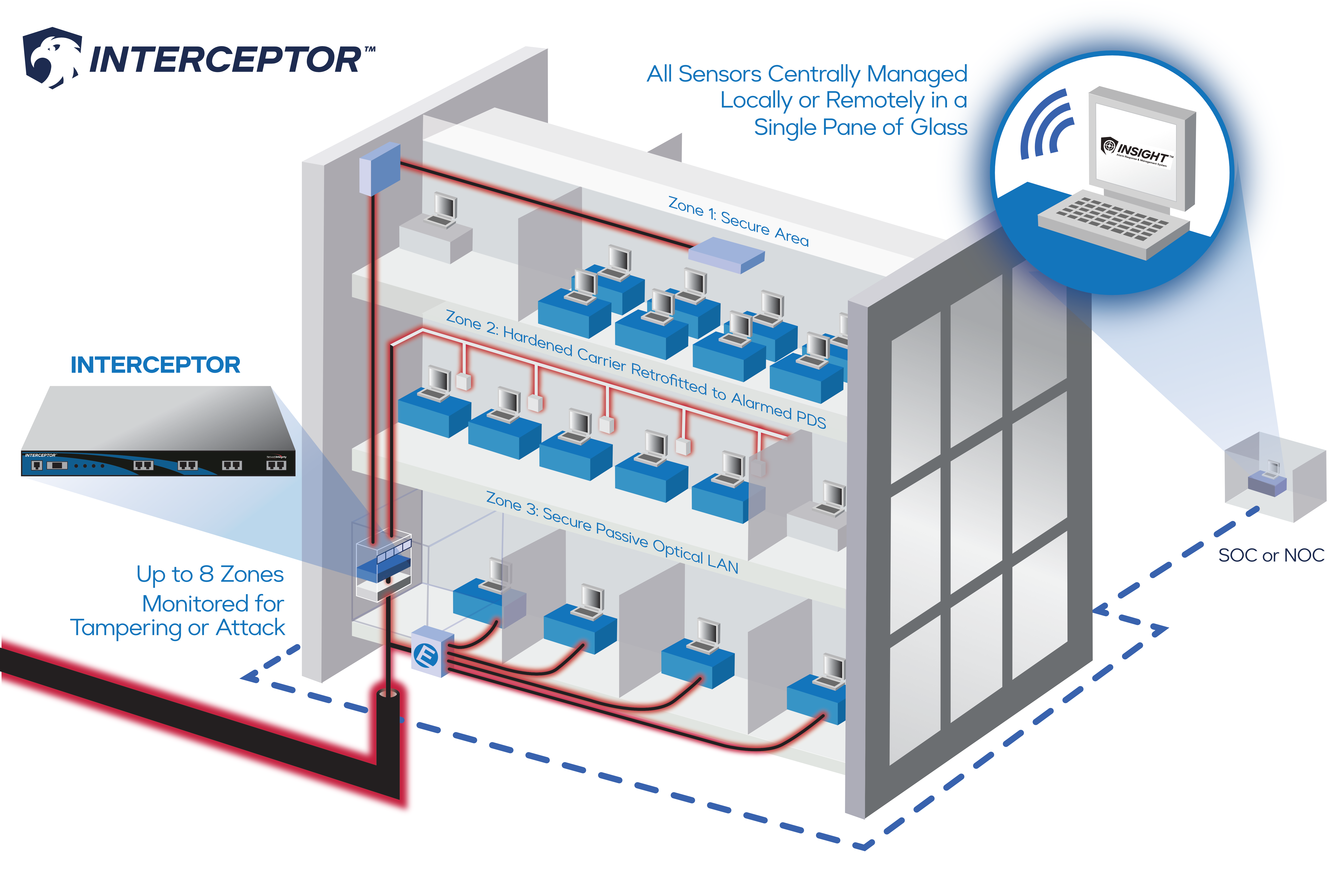

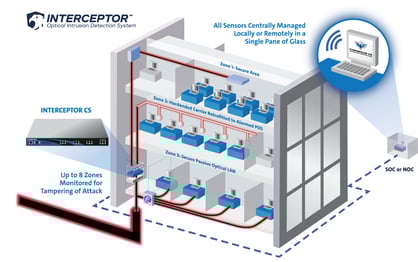

LAN Point-to-Multipoint Deployments

Because INTERCEPTOR monitors the fibers within the cables carrying the classified data (intrinsic monitoring), point-to-multipoint (hub-and-spoke) monitoring architectures can be created to mimic the physical network allowing efficient utilization of the monitoring device’s ports permitting high-density, logically clustered groups of protected SIPR drops. This allows multiple offices or workstations to be protected by a single alarm system port rather than each office or workstation requiring its own port. Use of this architecture enables many dozens of end-user drops to be protected by one alarm device. This results in cost reductions of 75% or greater per drop when compared to legacy protection methods.





Building to Building (OSP) Deployments

In lieu of spending hundreds of thousands of dollars to encase conduit runs in concrete, INTERCEPTOR can protect those same links for a fraction of the cost. Multi-port INTERCEPTORs can protect up to four separate cable runs (even more through point-to-multipoint design) or remain available for deployment to protect future SIPRNet requirements as they occur – with no additional cost or delay. INTERCEPTOR also alleviates the requirement of locked or alarmed manholes that are typically required even when concrete encasement is not required.

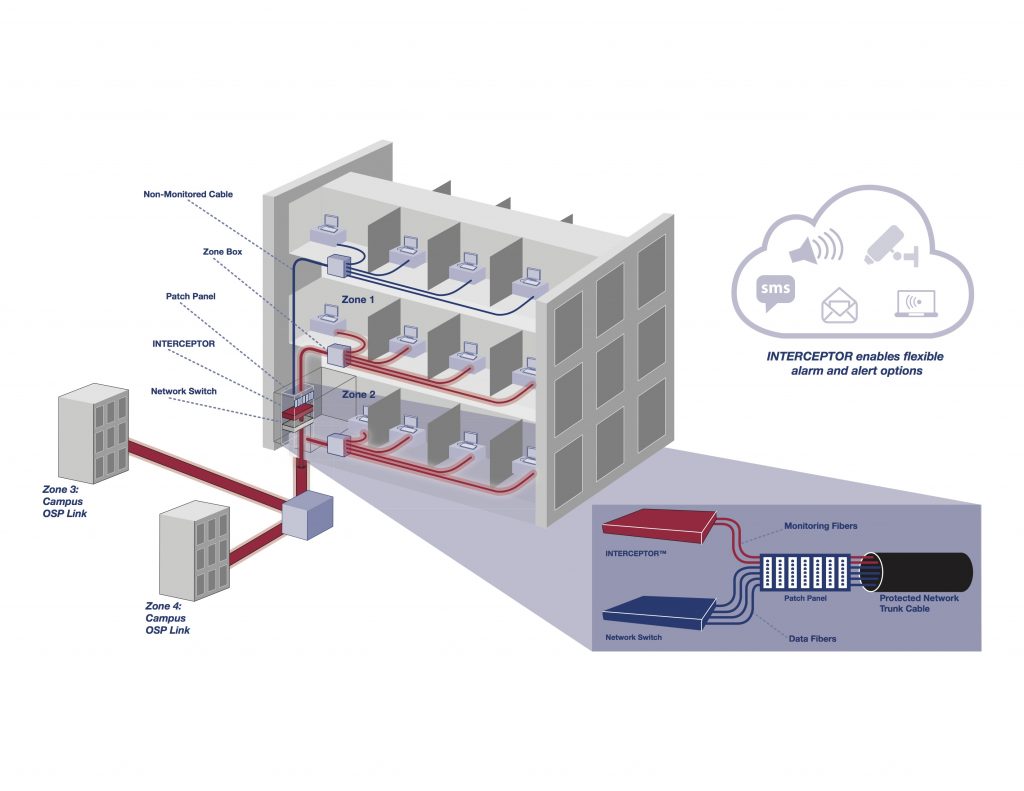

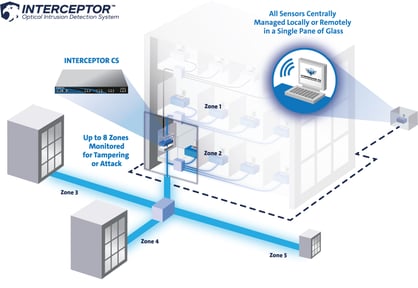

Inside-LAN and Building-to-Building (OSP) Deployments

One INTERCEPTOR unit can monitor both inside-LAN and OSP links.

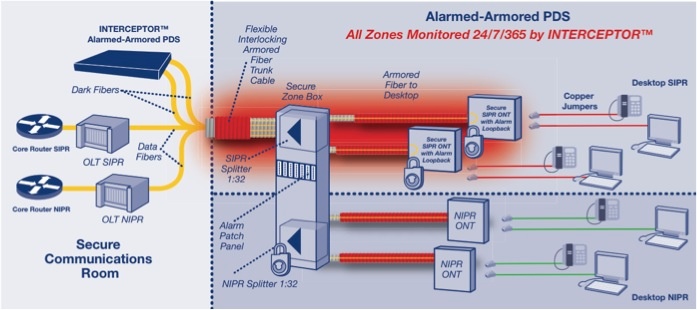

Secure Passive Optical Networks (Secure-PON) Deployments

Passive Optical Networks (PON) provides high-speed, high-bandwidth and secure voice, video and data service delivery over a combined fiber network. Since a typical PON is a combination of the entire aforementioned INTERCEPOTR applications, INTERCEPTOR is perfectly suited for deployment within a PON to meet CNSSI 7003 requirements, and is the easiest and most cost-effective solution available to secure and protect critical network infrastructure used for PON transport.

Electrical
Power Input 100/240V, 250mA 60/50Hz IEC
C14 3-Position Connector



Environmental
Operating Temperature 0°C – 45°C
Storage Temperature -10°C – 50°C
Operating Humidity 20% – 80% Non-Condensing

Physical
1U high, 19″ Rack Mountable
H x W x D: 45 x 432 x 368 mm
H x W x D: 1.75 x 17.0 x 14.5 inches

Weight
6.4 kg (14 lbs)

Local Management
Channel LED indicators, Channel Reset Buttons

Remote Management
RS232 Serial: Console Access
TACACS+ Compatible
10/100BaseT Ethernet: SSHv2, Telnet,
SNMPv2c, SNMPv3
INTERCEPTOR CS has a 1000BASE-T Ethernet connection

Alarm Management
SNMPv2c, SNMPv3, Syslog,
Self-Test Heartbeat LED Indicator
Email, SMS alerts
NO/NC Contacts
INTERCEPTOR CS incorporates a Unidirectional
Simplex Optical Communications Port for sending
alarms to an optional Cross-Domain Communications Unit

Optional Features
Rear connections
Connector types other than SC-UPC
Aerial fiber monitoring
Active fiber monitoring

Optical
1, 2, 4 or 8 Ports (multimode)
1,2 or 4 Ports (single-mode)
SC UPC Non-Angled Duplex Connectors
Dynamic range: 1, 2, or 4 port multimode 50dB
Dynamic range: 8 port multimode 20db
Dynamic range: single-mode 55dB
Note: Designed for 3dB Excess/Safety
Lead-in fiber multimode: Sensitive or Desensitized
Lead-in fiber single-mode: Sensitive

Industry Certifications & Features
The INTERCEPTOR is UL, FCC Part 15, IEC Class 1,
CDRH Class 1, and CE rated & certified

For specifications on all other products and extended warranty and support plans, please refer to our website at www.networkintegritysystems.com

Enterprise Ready with the CyberSecure Infrastructure Monitoring System (IMS)

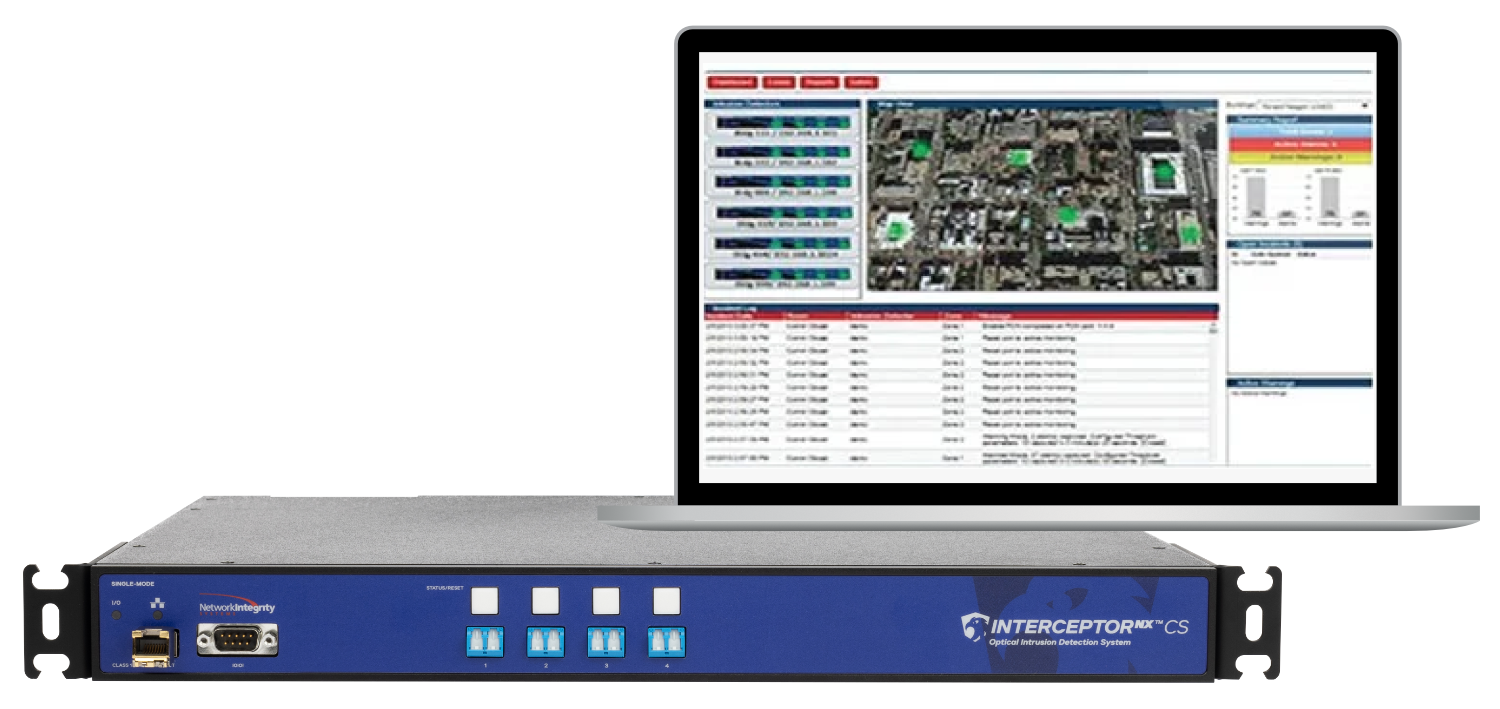

INTERCEPTOR CS is a bundled solution consisting of the INTERCEPTOR and an integrated, customized management system called CyberSecure IMS.  INTERCEPTOR CS centrally monitors and continually automates inspection and CNSSI 7003 compliant Standard Operating Procedures for response to any threat.  It also generates unique case resolution audit trails to simplify Information Assurance Management.

The CyberSecure IMS “Rapid Analysis Dashboard” provides:

  • Easy-to-use visual tools to monitor an entire office, building, campus or global network
  • Real-time optical warning system to help identify, analyze and react to a disturbance
  • Automatic notification via phone, email, SMS and/or audible/visual alarm
  • Supported Camera Assisted Inspections and ability to redirect IP security cameras
  • Capability to control door locks and security systems at the zone being attacked

OPTIONAL ANCILLARY PRODUCTS

With INTERCEPTOR CS, each alarmed zone can be customized to meet the end user requirements specific to that zone. In the event an alarm is triggered, the corresponding data can be shut off using an ancillary device, the StopLight™ Optical Interface.

INTERCEPTOR CS allows alarm notification transmission over unclassified networks by incorporating the optional Cross-Domain Communications Unit, enabling an organization to receive notifications of alarms at any time from anywhere.

Additional information can be found in our INTERCEPTOR CS Brochure.

Watch now to see how INTERCEPTOR CS is ensuring organizations pass CCRI’s the first time, every time!

INTERCEPTOR CS Solutions Video

INTERCEPTOR CS is the industry’s first infrastructure protection system capable of eliminating nuisance alarms.
