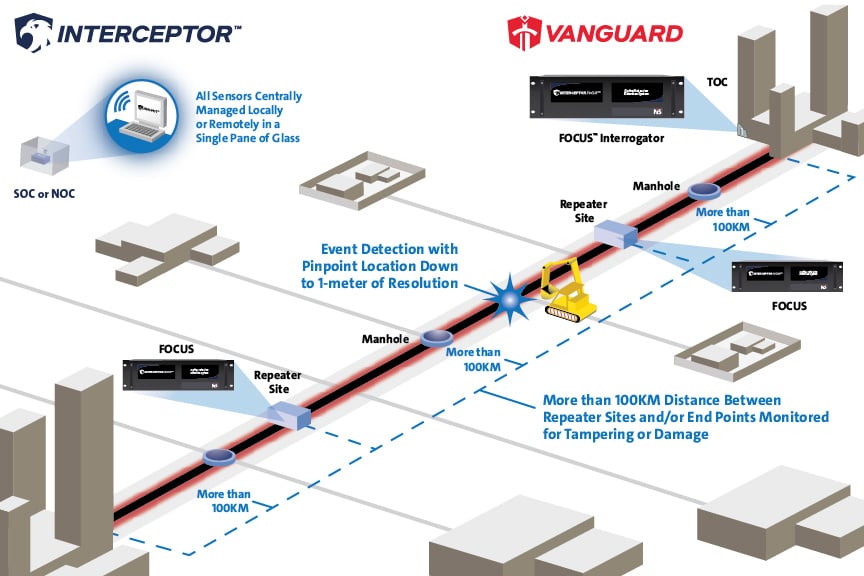

The Network Integrity Systems INTERCEPTOR FOCUSNX™ Optical Intrusion Detection System utilizes Distributed Acoustic Sensing (DAS) technology to monitor long-haul cables and pathways, up to 100km in length, with pinpoint location of any disturbances to your network communications cables, to 1-meter of resolution.

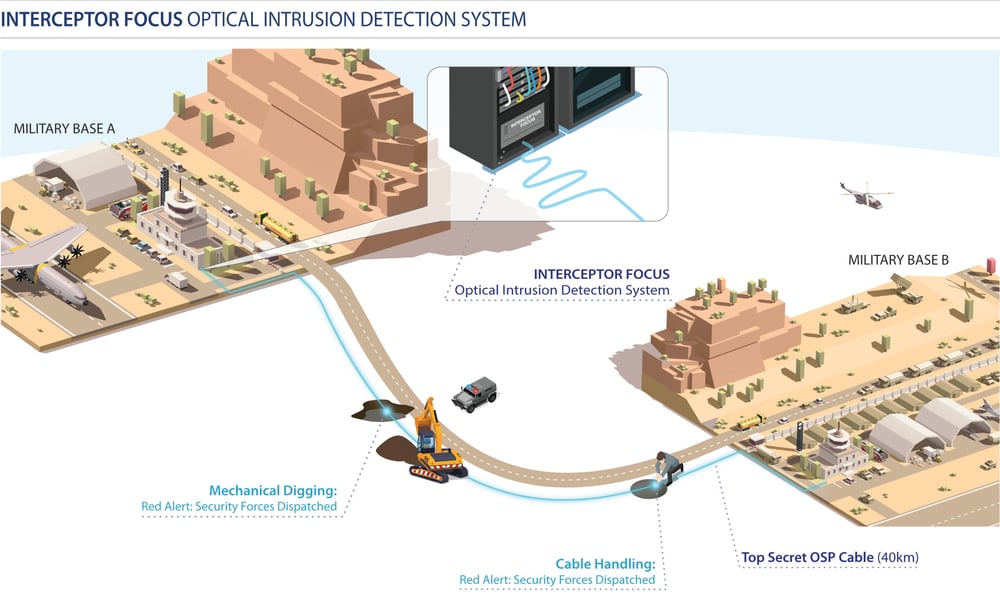

The INTERCEPTOR FOCUSNX sends pulsed laser light into a single strand of single-mode optical fiber and monitors the Rayleigh backscatter from the reflected light. The Rayleigh backscatter pattern changes with acoustic and vibrational energy. Once the reflected pattern is received, it is processed and analyzed by advanced algorithms to determine the type of event, such as digging near buried conduit, cutting into conduit, and physical handling of the cable. The system will also provide precise location along the cable and monitor the event over time.
Electrical
Power Input: 100/240V AC, 60/50 Hz, 24/48V DC
Operating Power (Typical) <100 Watts
Maximum Power: 165 Watts
Power Supplies: Dual Redundant
Heat Management:Passive Cooling
Environmental
Operating Temperature: 5°C - 50°C
Storage Temperature: -40°C - 70°C
Operating Humidity: 85% Non-Condensing
Physical
Installed: 19' Rack Mount (3 RU)
Dimensions (in): 5.22 x 19 x 17.8
Dimensions (mm): 132.5 x 482.6 x 453
Weight
37 lbs, 17 kg
Remote Management
Network: Ethernet SFP (Ships w 1000Base-T)
Protocols: ZeroMQ API
Optical Specifications
Optical Connection: LC/APC
Ports: 2
Dynamic Range (Single Mode): 18dB
Detection Range: Up to 100km on single-mode fiber (50km per port)*
Industry Certifications
Laser Safety: Class 1 laser product (IEC 60825-2014, 21CFR1040.10/11)
Safety (UL): USA: UL 62368-1, EU: CE Compliant - 2014/30/EU
EMC Compliance: USA: FCC Part 15 B, EU: CE Compliant - 2014/30/EU
Cybersecurity: CIS Certified
*Note-Distance with a one-way optical loss of up to 18 dB. Range is dependent upon quality of fiber, local environment and the specific activity detection required.

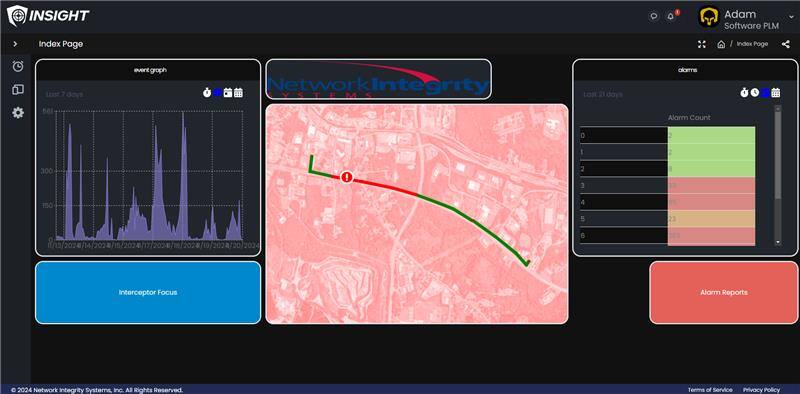

INTERCEPTOR FOCUS can locate an intrusion event to as close as +/- 10 feet and show that location on a map.
