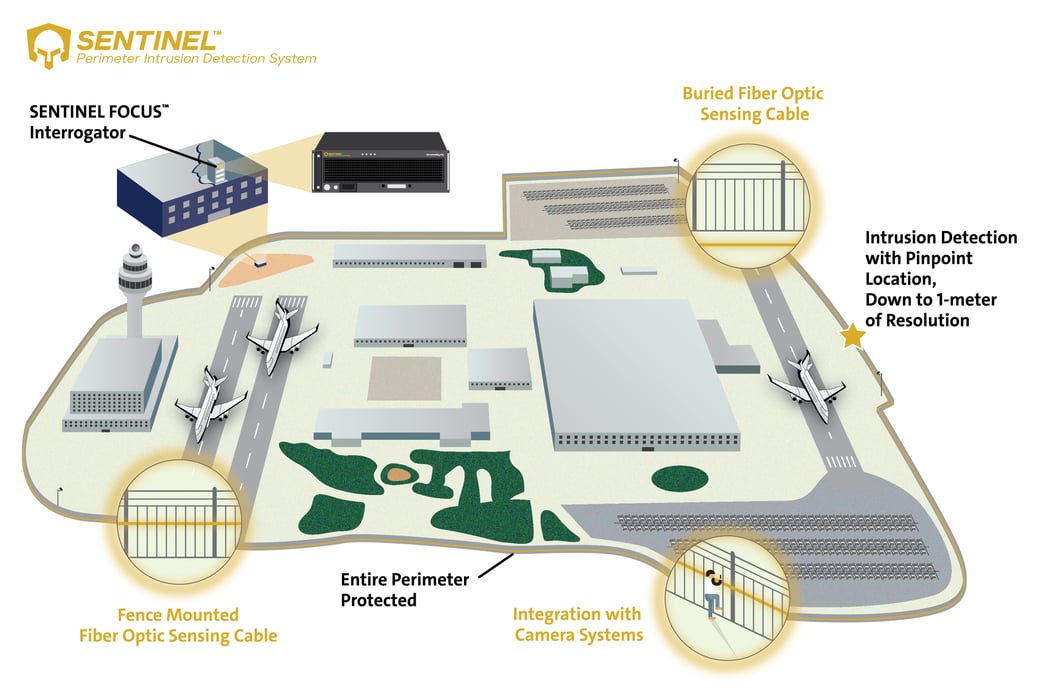

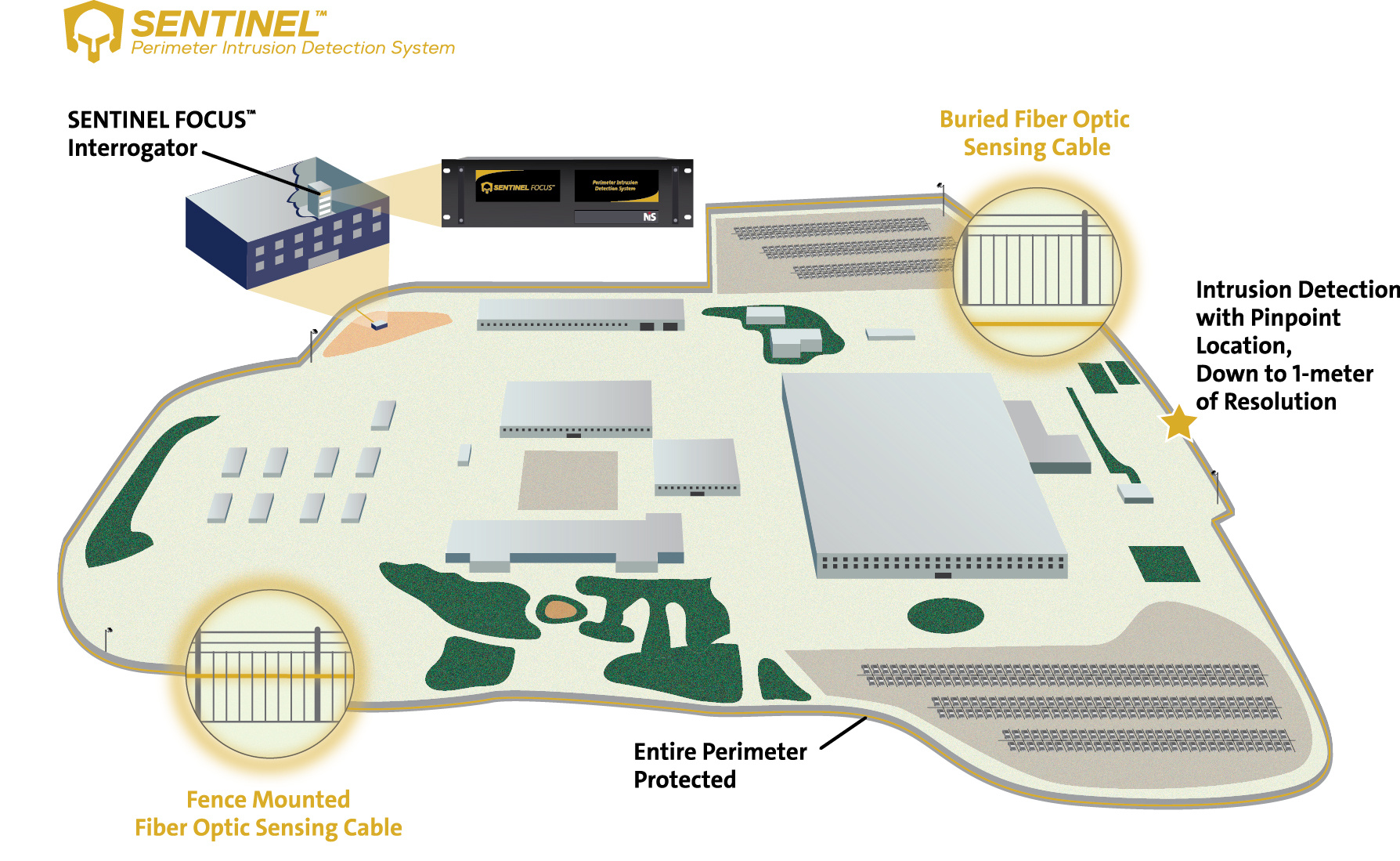

SENTINEL FOCUS™ is a state-of-the-art Perimeter Intrusion Detection System with long-range monitoring capability that utilizes Distributed Acoustic Sensing (DAS) to detect and pinpoint the exact location of attempted intrusions into your perimeter. SENTINEL FOCUS can be deployed on any type of security fence to detect cutting and climbing, or it can be buried to detect walking, digging or vehicle approach. By pulsing light down a single-mode sensing fiber, SENTINEL FOCUS can detect events anywhere along the perimeter, up to 40km in length, while pinpointing the location, down to 1-meter of resolution. SENTINEL FOCUS can be easily installed and integrated into your new or existing CCTV or Access Control system to increase your situational awareness and the security stance of your facility. The system is calibrated to provide very high Probability of Detection (PD) and extremely low Nuisance and False Alarm Rates (NAR/FAR).
SENTINEL FOCUS is also used in border protection applications as part of a Linear Ground Detection System (LGDS). Used in border applications, the DAS technology can detect, identify, and locate border events with a simple and cost effective solution.

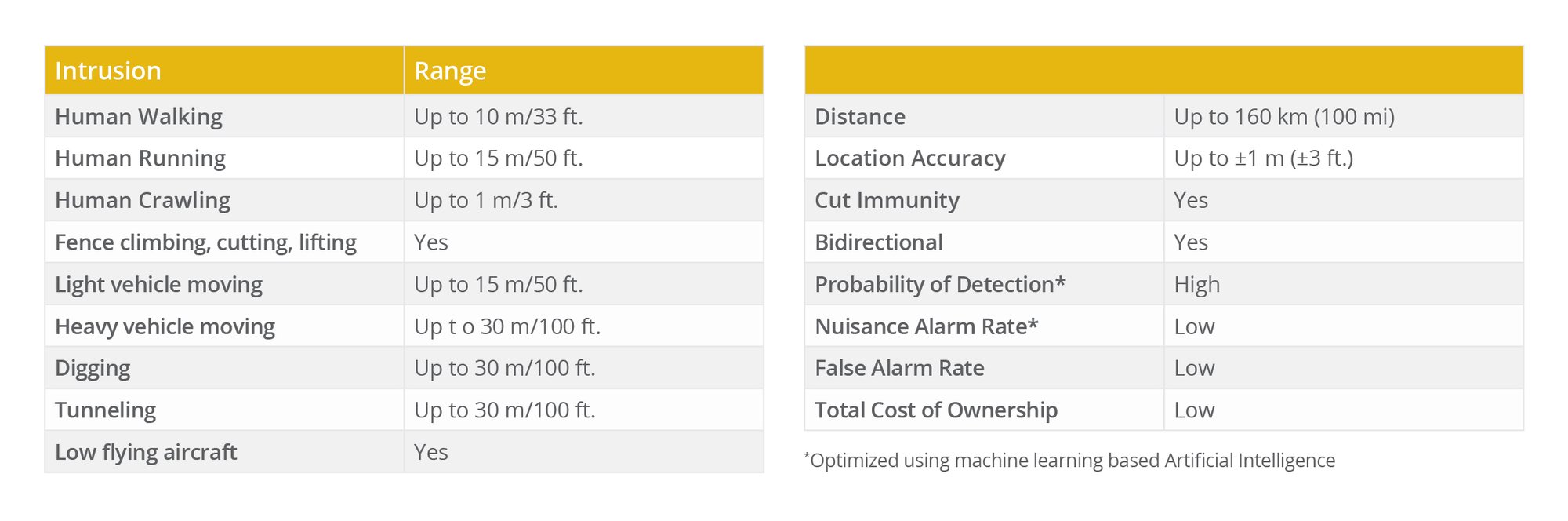

✓ Identifies disturbances such as vehicle/person approach, digging, cutting, climbing, and fabric lift
✓ Extreme sensitivity using state-of-the-art DAS technology
✓ Detects intrusions along perimeters up to 40km in length
✓ Low installation cost, using a single strand of telecommunications grade optical fiber
✓ Immune to EMI/RFI and lightning
✓ Pinpoints the exact location of intrusion events, down to 1-meter of resolution
✓ No electronics or powered devices in the field
✓ Excellent Linear Ground Detection System (LGDS) integration capabilities
✓ Monitors entire perimeter across all terrains and in all environments
✓ Low Total Cost of Ownership (TCO)
Electrical
Voltage, Frequency: 115-230VAC50-60Hz
Power: 450W (Max.) 300W (Typical)
Environmental
Operating Temperature: +5°Cto +40°C(41°Fto 140°F)
Operating Humidity: 80% RH for temperatures up to 31°C(87.8°F)
Physical
SENTINEL FOCUS Size w/o brackets and rear guards (HxWxD): 178mmx483mmx540mm (7”x 19”x21.25”)(4U)
SENTINEL FOCUS EX Size w/o brackets and rear guards (HxWxD): 222mmx483mmx540mm (8.75”x19”x21.25”)(5U)
Weight
SENTINEL FOCUS: 24kg(53lbs)
SENTINEL FOCUS EX: 29kg (64lbs))
Local Management
Laser status LED indicators
Mechanical laser lockout
1 x DVI-I port
USB 2.0 - 2 x front panel, 2 x rear panel
USB3.0 - 2 x front panel
Data Storage: eSATAp
Storage Volume: Up to 3TB
Remote Management
1 x TIA-232 or RS-232port
1 x 1000-BaseT Ethernet port
Alarm Management
XML
CyberSecureIMS Integration
Optional Features
Optional 10G-baseT card for data streaming
Option to install RAID card and connect to a RAID array
Optical
1or 2 Ports: 1x E2000 APC optical connector (2x for SENTINEL FOCUS EX) Dynamic Range: 12.5dB
Fiber Type: Single-mode 15xxnm ITU G652 series
Pulse Lengths: 2, 3, 5, 10, 20, 50m
Spatial Sampling Rate: 0.67m
Minimum detection frequency: 1Hz
Maximum detection frequency: 20 kHx (at 2.5kmof cable length)
Frequency Response:
5km cable = 10 kHz
20km cable =2.5 kHz
40km cable = 1.25kHz
50km cable = 1.0 kHz
*Note: With a one-way optical loss of up to 12.5dB. Range and resolution are dependent upon quality of fiber, local environment, and the specific detection streams required.
Industry Certifications & Features;
IEC60825-1, UL60950-1, CDRH-21CFR1040, FCC, RoHS certified
For specifications on all other products and extended warranty and support plans, please refer to our website at www.networkintegritysystems.com

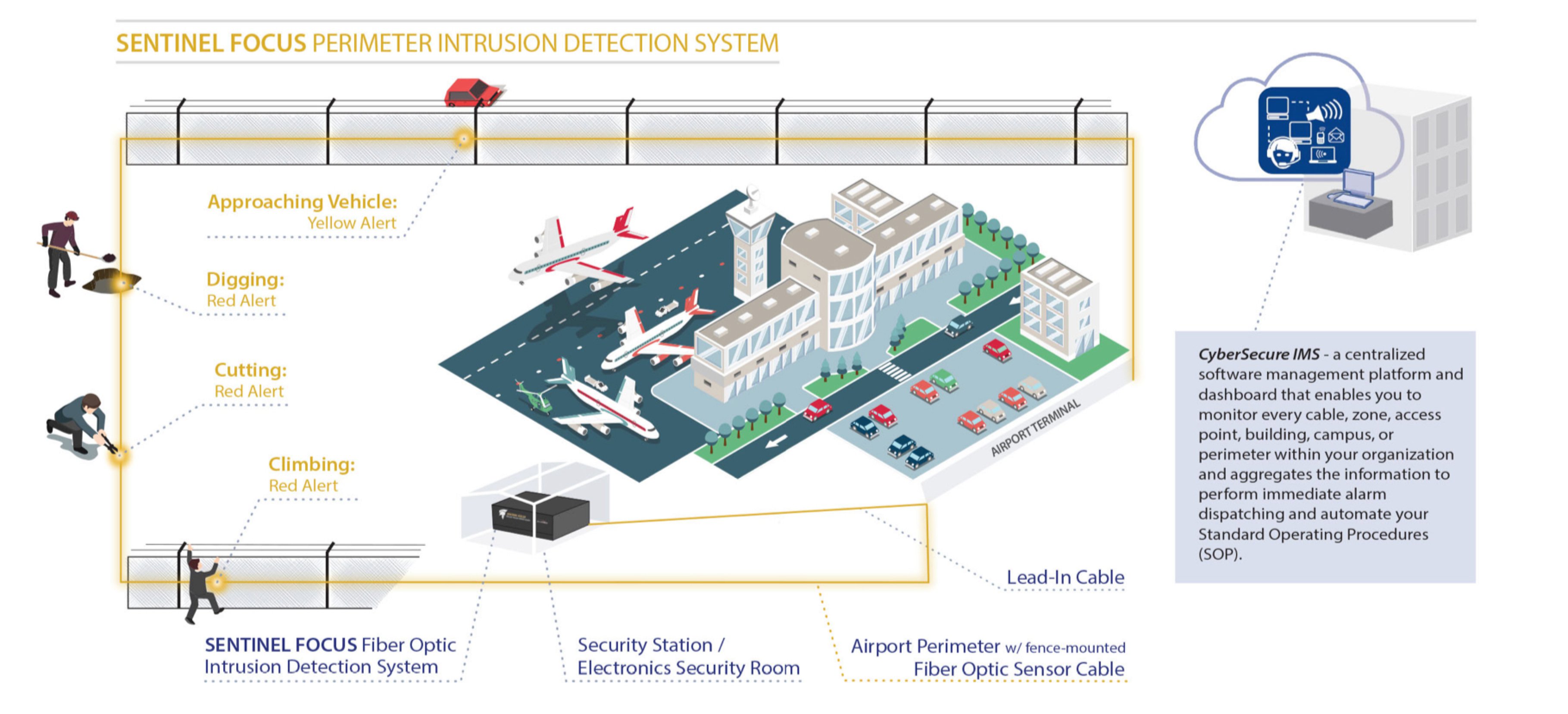

SENTINEL FOCUS™ integrates with optional enterprise alarm management software systems, such as the CyberSecure IMS, enabling remote monitoring and management of alarm devices. This provides insight and situational awareness into when and where an intruder is looming, and provides tools for a quick and appropriate response.

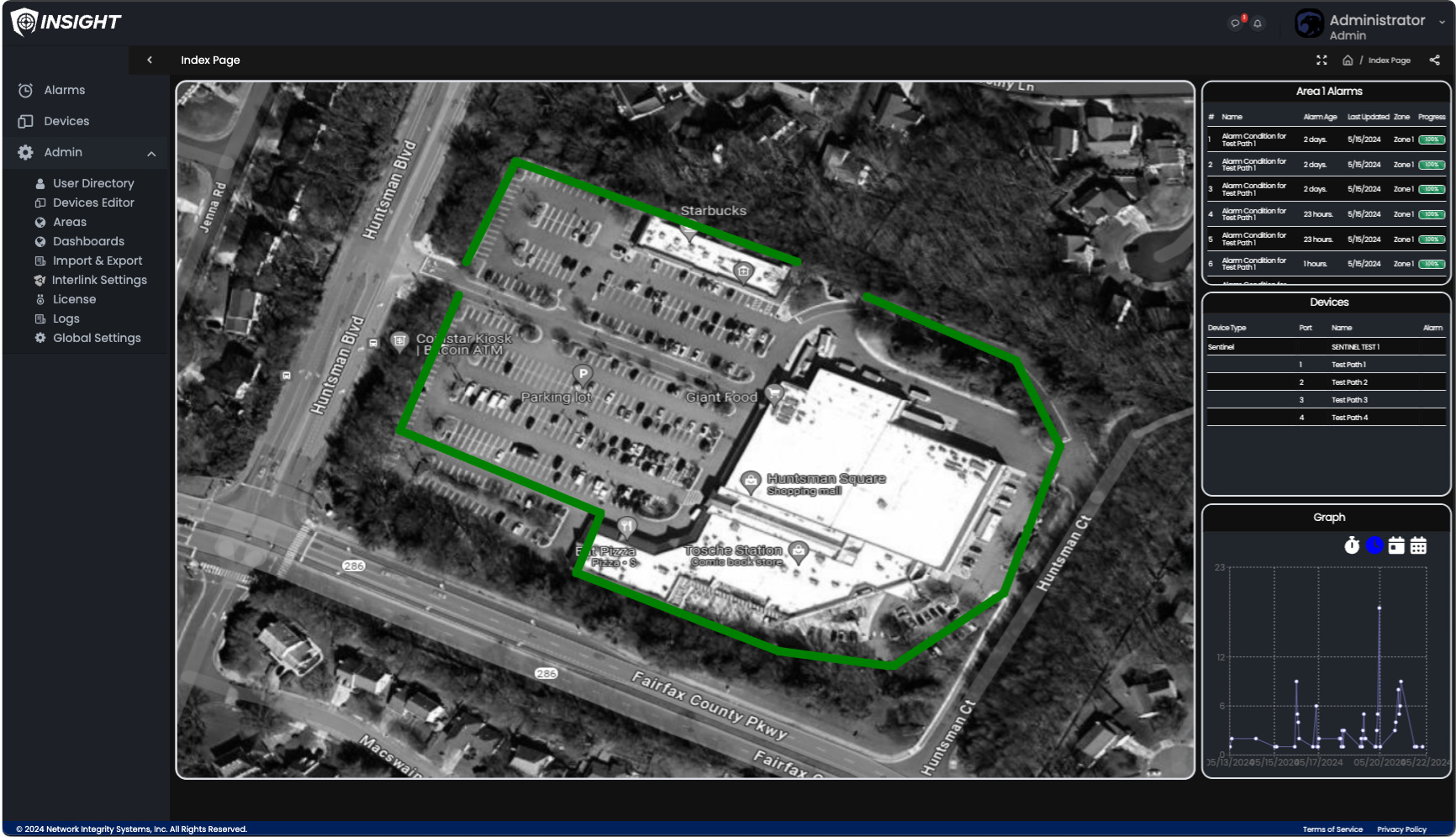

For example, the CyberSecure IMS “Rapid Analysis Dashboard” provides:
SENTINEL FOCUS uses standard Single-mode Optical Fiber to identify walking, climbing, digging, or other activities around any type of perimeter.
