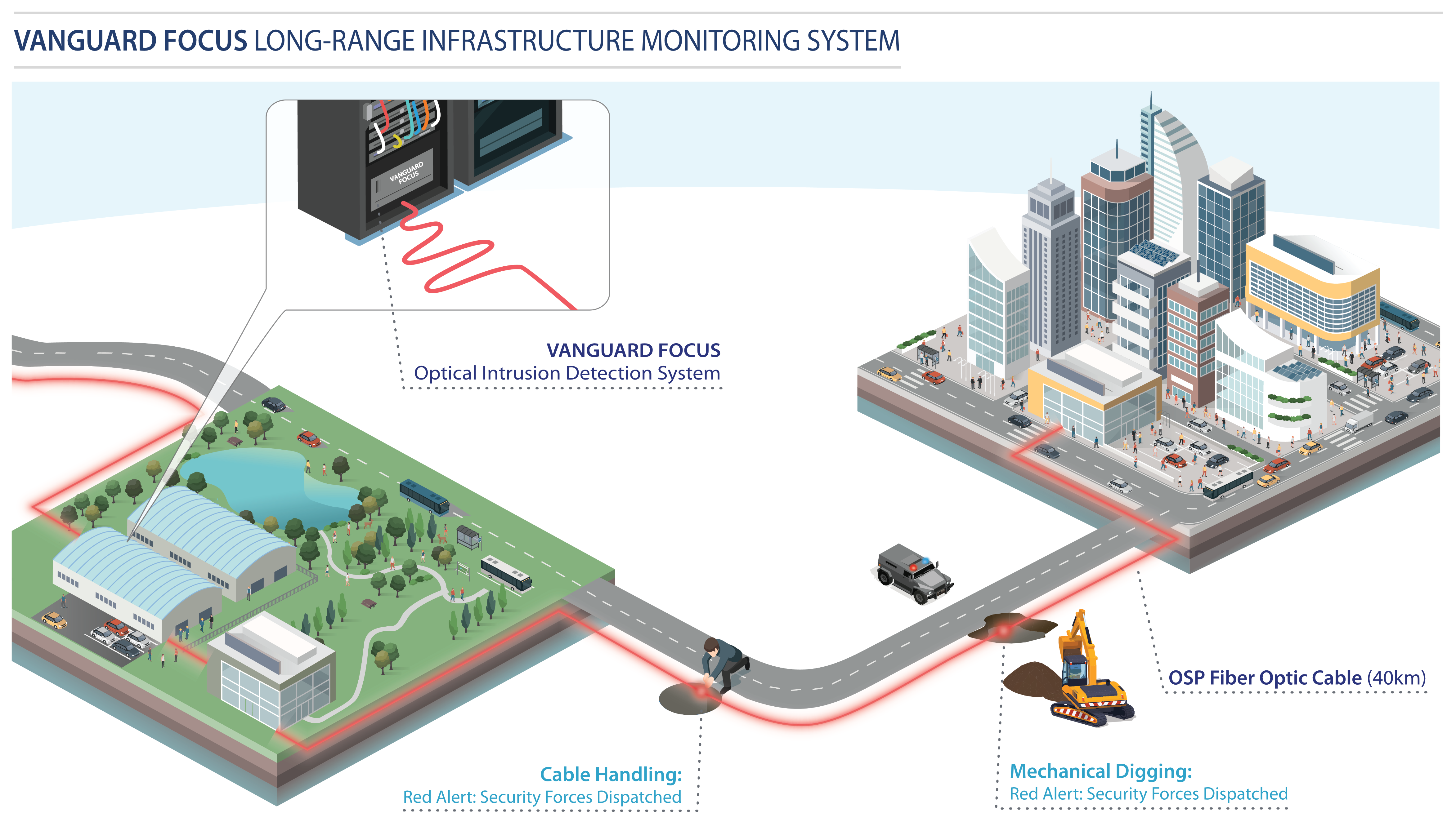

The Network Integrity Systems VANGUARD FOCUS™ Optical Intrusion Detection System utilizes Distributed Acoustic Sensing (DAS) technology to provide long range detection capability along with pinpoint location of any physical disturbances to your critical communications cables. The VANGUARD FOCUS sends pulsed laser light into a single strand of single-mode optical fiber and monitors the Rayleigh backscatter from the reflected light. The Rayleigh backscatter pattern changes with acoustic and vibrational energy. Once the reflected pattern is received, it is processed and analyzed by advanced algorithms to determine the type of event, such as digging near buried conduit, cutting into conduit, and physical handling of the cable. The system will also provide precise location along the cable and monitor the event over time.
Electrical
Voltage, Frequency: 115-230VAC50-60Hz Power: 450W (Max.) 300W (Typical)
Environmental
Operating Temperature: +5°Cto +40°C(41°Fto 140°F)
Operating Humidity: 80% RH for temperatures up to 31°C(87.8°F)
Physical
Size w/o brackets and rear guards (HxWxD): 178mmx483mmx540mm (7”x 19”x21.25”)(4U)
Focus EX -Size w/o brackets and rear guards (HxWxD): 222mmx483mmx540mm (8.75”x19”x21.25”)(5U)
Weight
24kg(53lbs) (Focus EX =29kg (64lbs))
Local Management
Laser status LED indicators Mechanical laser lockout
1 x DVI-I port
USB 2.0 = 2 x front panel, 2 x rear panel USB3.0 =2 x front panel
Data Storage: eSATAp Storage Volume: Up to 3TB
Remote Management
1 x TIA-232or RS-232port
1 x 1 GbEthernet port
Alarm Management
XML
CyberSecureIMS Integration
Optional Features
Optional 10GigE card for data streaming
Option to install RAID card and connect to a RAID array
Optical
1or 2 Ports: 1xE2000 APC optical connector (2x for Focus EX) Dynamic Range: 12.5dB
Fiber Type: Single-mode 15xxnm ITU G652 series
Pulse Lengths: 2, 3, 5, 10, 20, 50m
Spatial Sampling Rate: 0.67m
Minimum detection frequency: 1Hz
Maximum detection frequency: 20 kHx (at 2.5kmof cable length)
Frequency Response:
5km cable =10 kHz
20km cable =2.5 kHz
40km cable =1.25kHz
50km cable =1.0 kHz
*Note: With a one-way optical loss of up to 12.5dB. Range and resolution are dependent upon quality of fiber, local environment, and the specific detection streams required.
Industry Certifications & Features;
IEC60825-1, UL60950-1, CDRH-21CFR1040, FCC, RoHS certified
For specifications on all other products and extended warranty and support plans, please refer to our website at www.networkintegritysystems.com
VANGUARD FOCUS™ is a bundled solution consisting of the VANGUARD FOCUS interrogator and an integrated, customized management system called CyberSecure IMS. VANGUARD FOCUS centrally monitors and continually automates monitoring and response to any threat. It also generates unique case resolution audit trails to simplify reporting and analysis.

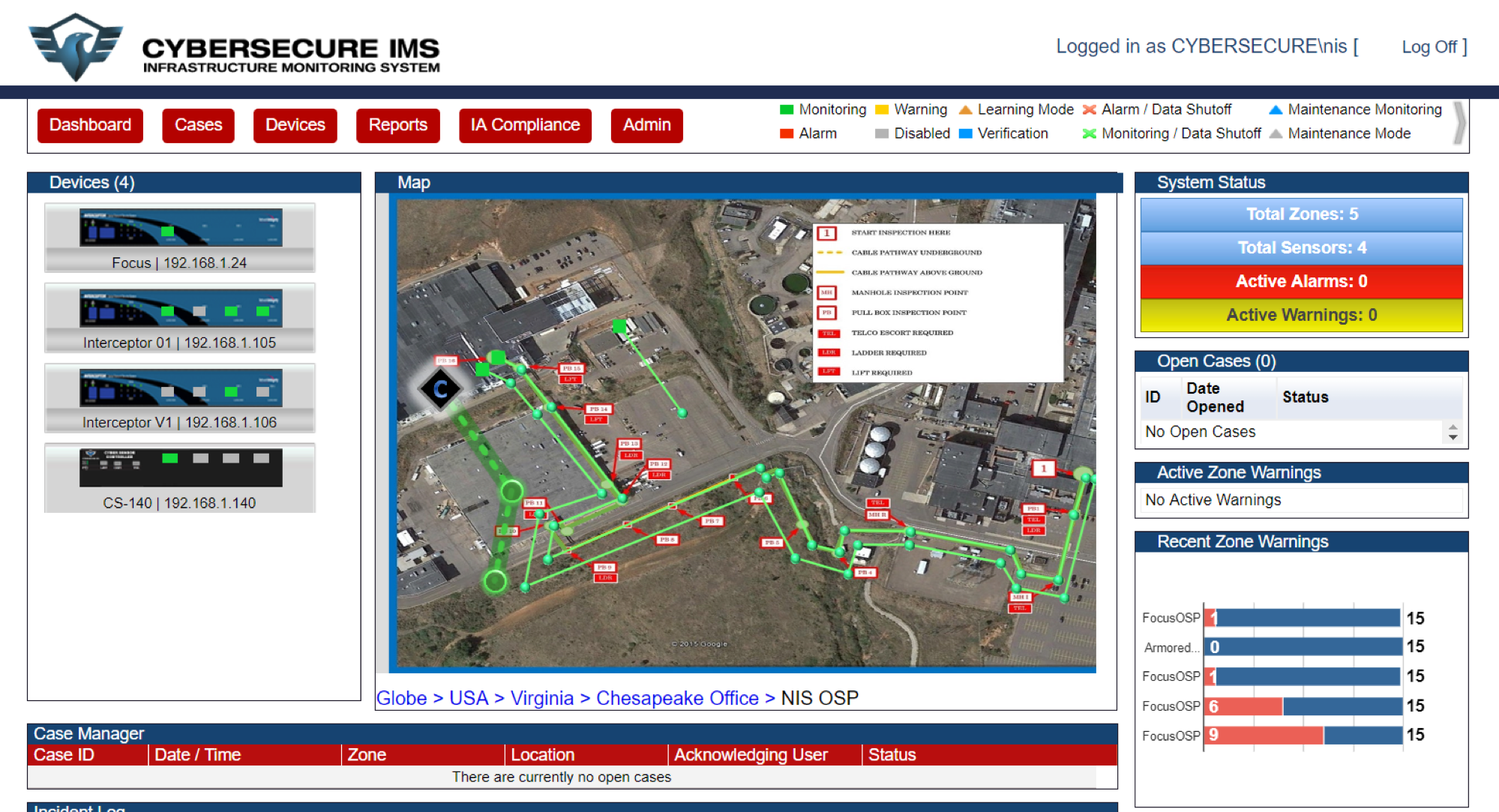

The CyberSecure IMS “Rapid Analysis Dashboard” provides:
VANGUARD FOCUS can locate an intrusion event to as close as +/- 10 feet and show that location on a map.
