SENTINEL II™ utilizes Fiber Optic Sensing Technology to detect Cut, Climb, and Fabric Lift activity; immediately detecting intrusions into your facility, protecting your people and preventing theft or sabotage.

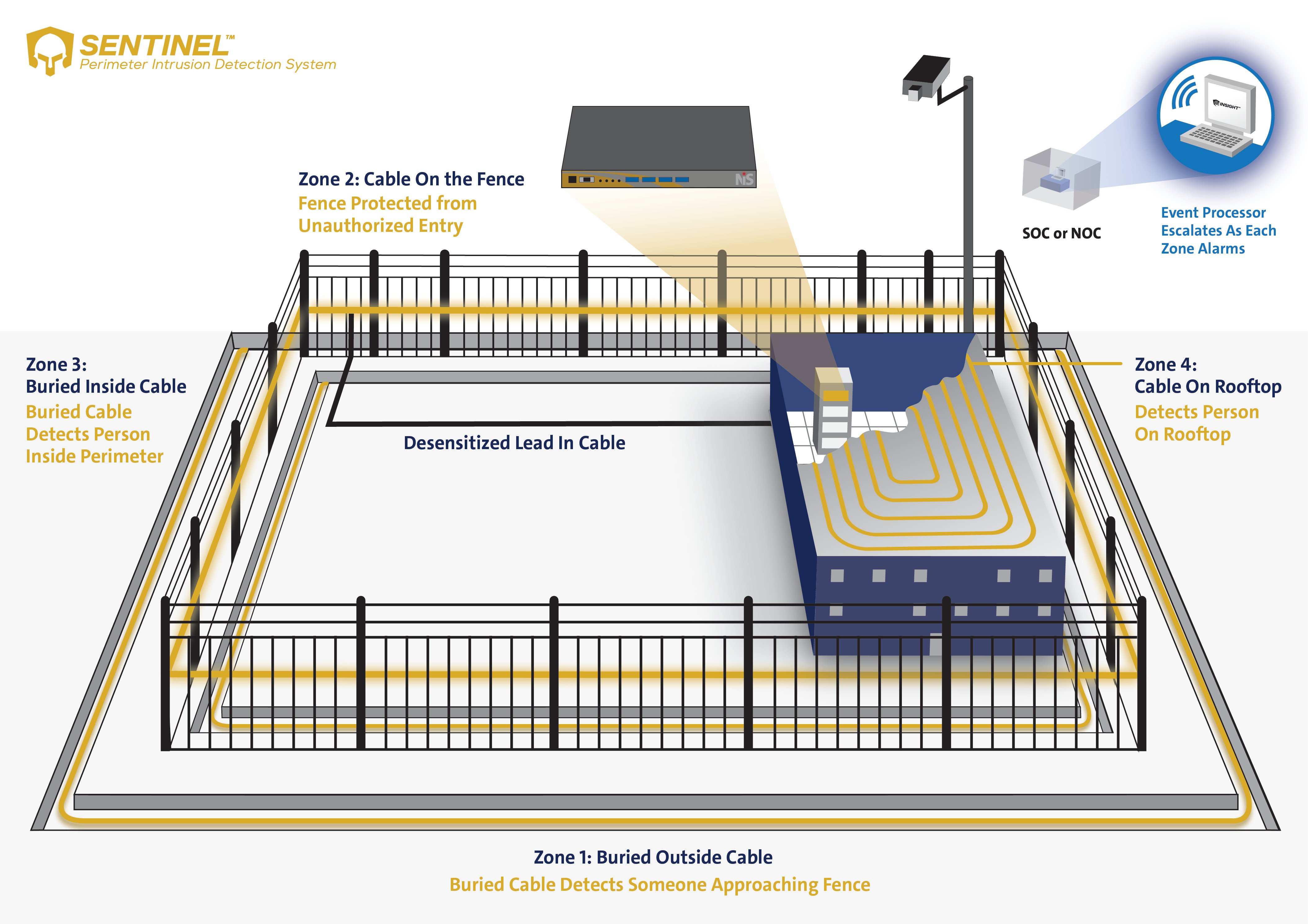

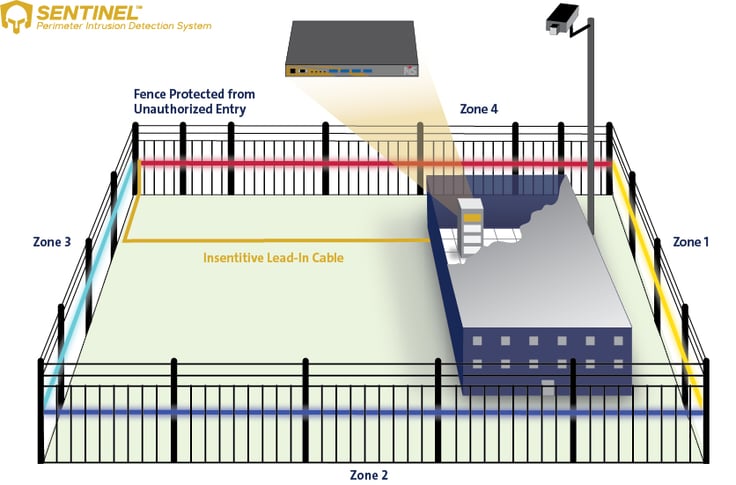

Using patented technologies, one zone based SENTINEL II Fiber Optic Intrusion Detection System can continually monitor up to four zones of the perimeter fence line for disturbances that indicate Cut, Climb, or Fabric Lift activities. This 24/7/365 monitoring allows the system to immediately detect and report intrusion attempts to your new or existing security system to prompt immediate assessment and response to the situation. Our patent pending self-tuning technology is designed for rapid implementation and automatically adjusts the tuning as the environment changes resulting in an extreamly low Total Cost of Ownership.
Electrical
Power input 100/240V, 250mA, 60/50 Hz IEC
C14 3-position connector
Environmental
Operating Temperature: 0C – 45C
Storage Temperature: -10C – 50C
Operating Humidity: 20%-80% Non-Condensing
Physical

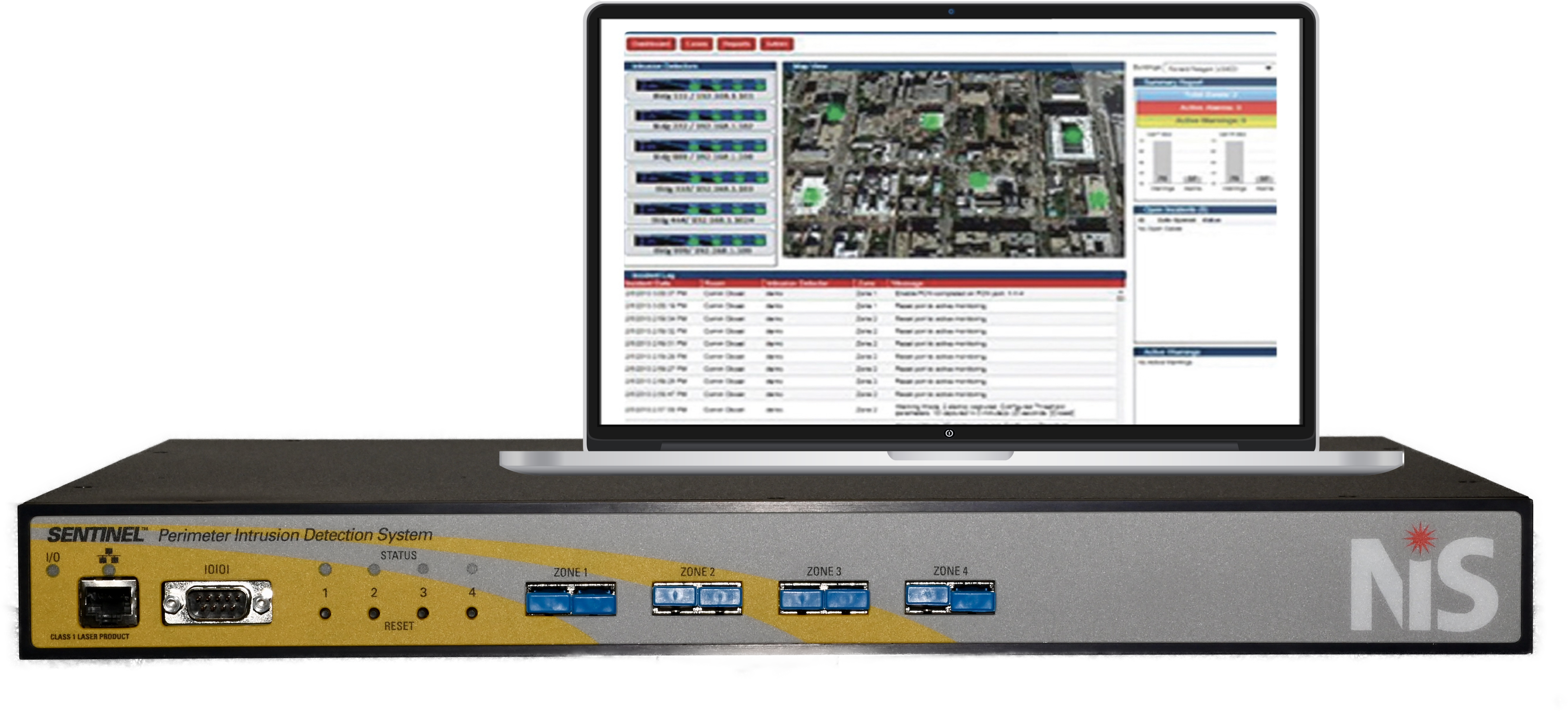

1U high, 19” Rack Mountable
HxWxD: 45x432x368mm
HxWxD: 1.75×17.0x14.5 inches
Weight
6.4Kg (14 lbs)
Local Management
RS232 Serial: Console Access
1GB Ethernet: SSHv2, Telnet, SNMPv2c, SNMPv3
Alarm Management
SNMPv2c, SNMPv3, Syslog, Self-Test Heartbeat LED Indicator
Email, SMS alerts
NO/NC Contacts
Optical
SC-UPC Non-Angled Connectors
Two or four ports
Dynamic range: 20dB
Note: Designed for 3dB Excess/Safety
Multimode Sensor Cable
Single-mode Desensitized Lead-in Fiber
Industry Certifications & Features
UL, FCC Part 15, IEC Class 1, CDRH Class 1, and CE rated & certified
For example, the CyberSecure IMS “Rapid Analysis Dashboard” provides:
A high performance perimeter intrusion detection system is integral to an effective layered security plan.
